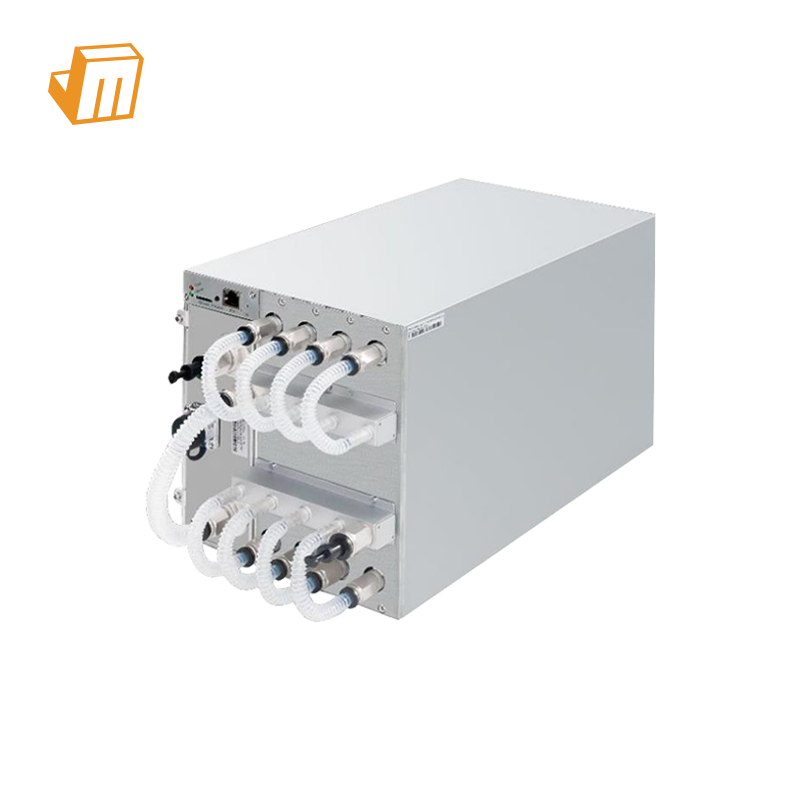

Bitmain Antminer S19 XP+ Hyd is a high-performance ASIC miner developed by Bitmain, engineered for the SHA-256 algorithm and optimized for Bitcoin (BTC) mining. It delivers an unmatched hashrate of 293TH/s with a power efficiency of 19J/Th (5567W), making it ideal for miners seeking high performance and stable returns.
| Specifications
| Product Glance | Value |
| Model | S19 XP+ Hyd. |
| Crypto algorithm/coins | SHA256 | BTC/BCH/BSV |
| Typical hashrate, TH/s(2-1) | 293 |
| Power on wall @35°C(2-2), Watt(2-1) | 5,567 |
| Power efficiency on wall @35°C(2-2), J/TH(2-1) | 19 |
| Detailed Characteristics | Value |
| Power Supply | |
| Phase | 3 |
| Input voltage, Volt(3-1) | 380~415 |
| Input Frequency Range, Hz | 50~60 |
| Input max current, Amp | 12 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server Size (Length*Width*Height, w/o package), mm | 339*173*207 |
| Server Size (Length*Width*Height, with package), mm | 570*316*430 |
| Net weight, kg | 12.3 |
| Gross weight, kg | 13.6 |
| Environment Requirements | |
|
Inlet coolant temperature,°C
|
20~50 |
|
Coolant flow, L/min
|
8.0~10.0 |
|
Coolant pressure, bar
|
≤3.5 |
|
Working coolant(3-2)
|
Antifreeze/ Pure water/Deionized water
|
|
Coolant pH value
|
Antifreeze: 7.0~9.0
Pure water: 6.5~7.5
Deionized water：8.5~9.5
|
|
Diameter of coolant pipe connector, mm
|
OD10 |
| Storage temperature,°C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
